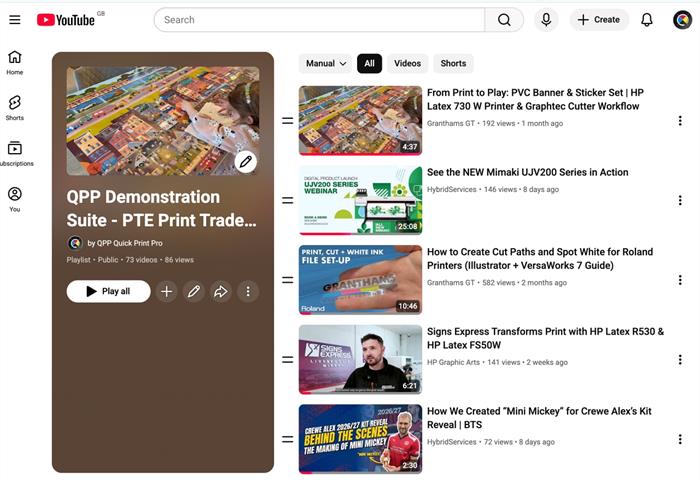

Granthams GT top the table in the QPP virtual showroom demonstrating the HP Latex 730 W printer being ably assisted with Graphtec cutter workflow.
Print to Play: PVC Banner and Sticker Set produced with HP Latex 730 W Printer and Graphtec Cutter Workflow.In this video, Granthams demonstrate a complete print and cut workflow to produce a full colour PVC banner activity sheet, paired with re-positional sticker sets, all created entirely in-house from start to finish.
Using the HP Latex 730 W Printer alongside the Graphtec FC9000 Vinyl Cutter and driven by ONYX PosterShop RIP Software, this project showcases how easily you can move from concept to finished product with a seamless, integrated workflow.
The result is a durable, high quality activity banner designed for kids, combined with contour cut and perforated A4 sticker sheets that can be applied, removed, and repositioned without damaging the print.
Learn While You View - What This Video Covers• Printing a 500gsm PVC banner with vibrant colour and durable finish
• Switching to white ink for printing on clear vinyl
• Creating re-positional sticker sheets with a white underlay
• Setting up artwork with white ink layers, contour cut paths and perforation cut paths
• Processing files through ONYX for print and cut integration
• Using registration marks for accurate alignment on the Graphtec
• Running contour cutting and perforation cutting workflows
• Producing clean, easy to use kiss-cut and pop out sticker sheets
Workflow Overview
The artwork is created in Adobe Illustrator, where separate paths are defined for print, white ink, contour cutting, and perforation.
This file is then processed through ONYX PosterShop, which manages both the print output and cut data. Registration marks are automatically applied, allowing the Graphtec FC9000 to accurately align and execute the cut paths.
The HP Latex 730 W handles both standard and white ink printing, with curing applied at the end of the job - helping optimise production time, especially when running nested jobs.
Production TimesPVC Banner Print: 4 minutes
Total Banner Time (including curing): 7 minutes, 32 seconds
Sticker Print Time: 24 minutes, 50 seconds
Additional Curing Time: 6 minutes, 56 seconds
Total Sticker Job Time: 31 minutes, 46 seconds
This highlights how short run, high quality products like this can be produced quickly and efficiently. Keep in mind that curing time would only be applied at the end of a run, so nesting multiple jobs would save on time significantly.
Why This Setup Works• Water based, odourless inks – safe for handling and suitable for child friendly applications
• Durable, scratch resistant prints – ideal for repeated use and repositioning
• White ink capability – enables printing on clear media without losing colour vibrancy
• Integrated print and cut workflow – reduces manual intervention and improves accuracy
• Versatile production – easily switch between materials and applications
This Type Of Workflow Is Ideal For:• Educational materials
• Children’s activity packs
• Events and exhibitions
• Retail promotions
• Custom short run products
• Outdoor signage
• Vehicle graphics
If you’d like a step by step walkthrough of how to set up artwork for:• White ink layers
• Contour cutting
• Perforation paths in ONYX
Let Granthams know in the comments, as they are happy to create a dedicated video.
If you found this useful, consider liking the video and subscribing for more real world print workflows, tips, and demonstrations.
